  • 10" rear drum brake wagner jeepster commando
  • 10" rear drum brake wagner jeepster commando
  • Image 3

rear Drum brake kit 10 rear Wagner kit

$275.00
SKU:
DBK10RW
Quantity:

Product Description

DBK10RW

This kit is a 10” Rear brake kit for the Wagner style brakes. See photo of the rebuilt backing plate using these parts. Make sure you have this style brake by comparing. All of these parts are sold on my web site as individual parts, purchasing this complete kit, you save 5% off regular web site prices. This kit rebuild the two rear brakes with all new parts, it does not rebuild the self adjusting linkage pieces or the parking brake parts pictured in the example

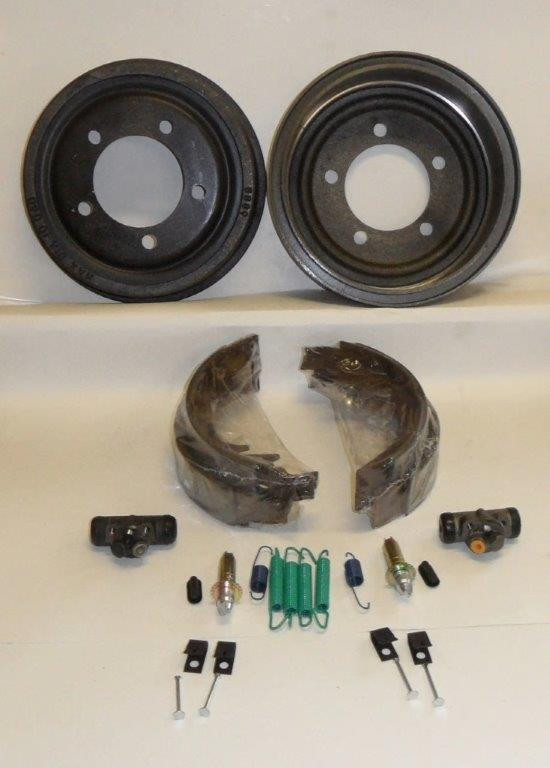

This kit included:

  • Two 10” brake drums p/n 994306
  • Brake shoe set p/n 8120393 (number 5 in the diagram)
  • Two 13/16” bore wheel cylinders p/n 938116, 8136612
  • 4 spring shoe return springs p/n 938111 (number 4 in the diagram)
  • 2 rubber plugs p/n 3201957 (number 19 in the diagram)
  • 4 pin shoe guides p/n 938109 (number 18 in the diagram)
  • 4 clips, shoe guide p/n 938110 (number 16 in the diagram)
  • 2 spring for adjusters p/n 945306 (number 14 in the diagram)
  • 1 Right adjuster p/n H2515 (number 12 in the diagram)
  • 1 Left adjuster p/n H2514

or individula
